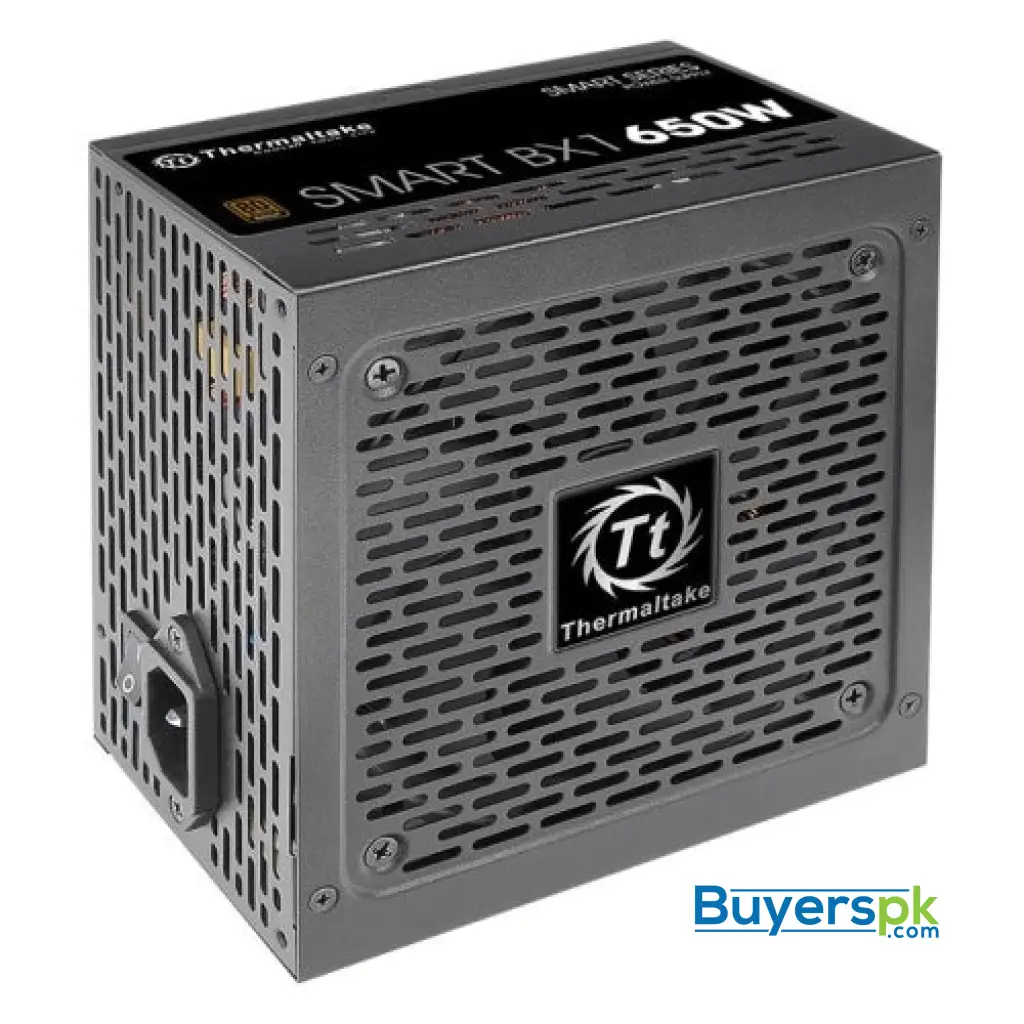

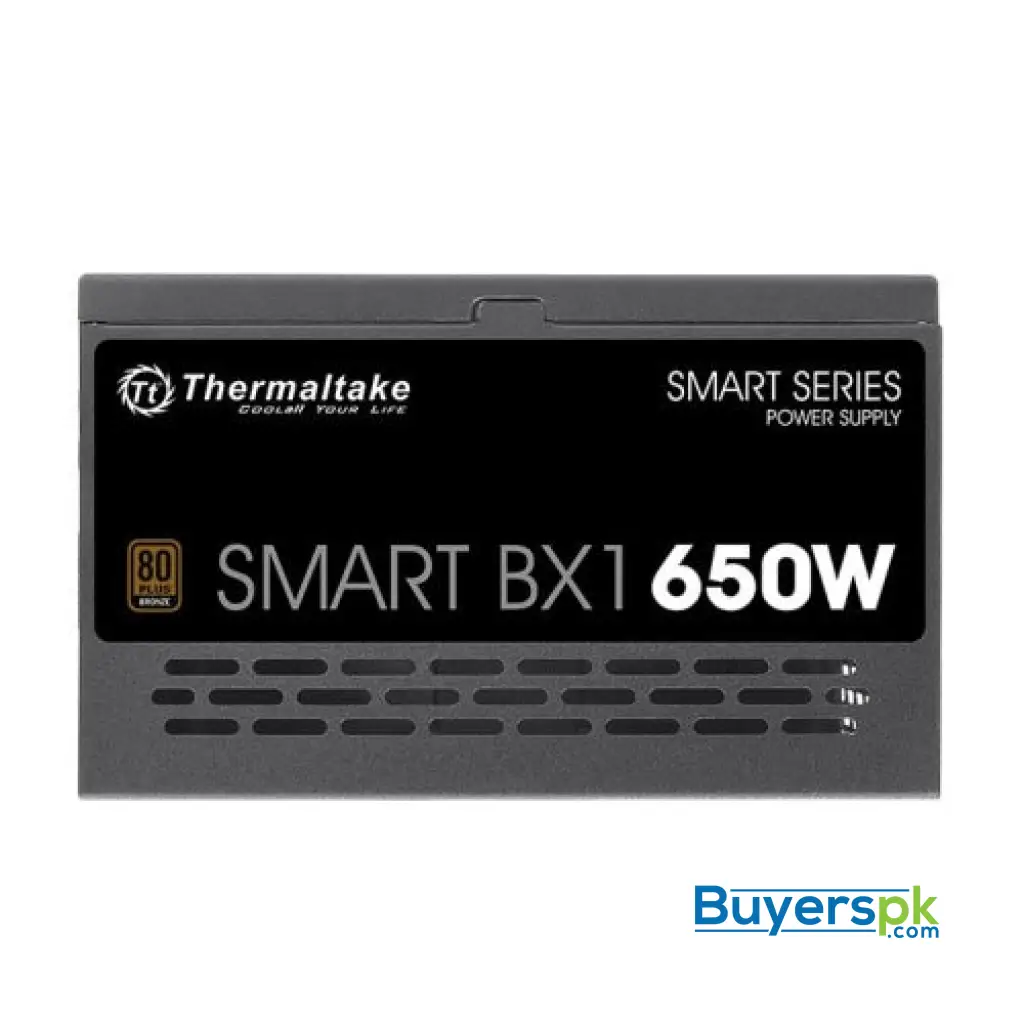

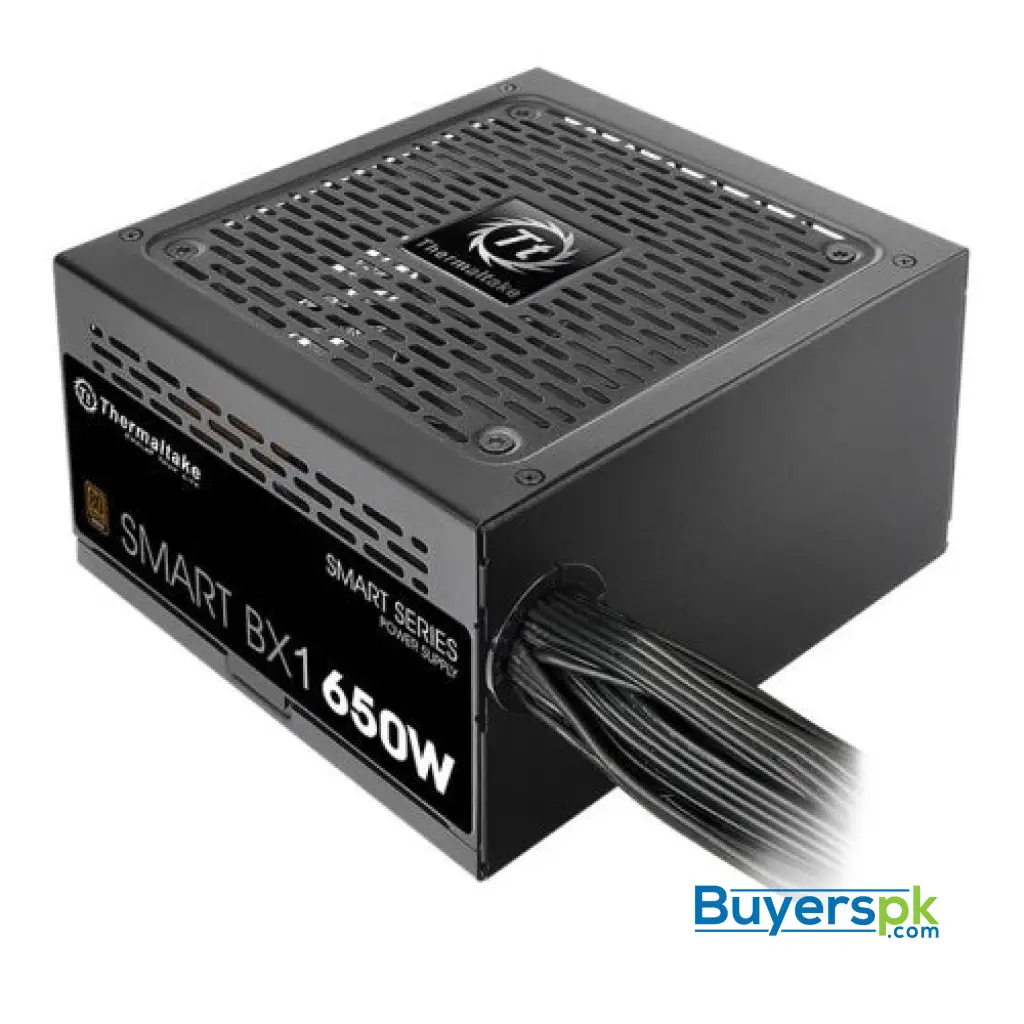

Thermaltake Power Supply Smart BX1 650W 80 PLUS Bronze

80 PLUS Bronze certified non-modular PSU with Hydraulic Bearing fan. Please note that the Smart BX1 650W comes in three authentic versions (Version A, Version B, and Version C).



P/N	PS-SPD-0650NNFABx-1
WATTS	650W
RGB FAN	No
FORM FACTOR	ATX
MODEL	SPD-650AH2NKB | SPD-650AH2NLB | SPD-650AH2NCB
TYPE	ATX 12V v2.3 and EPS v2.92
MAX. OUTPUT CAPACITY	650W
COLOR	Black
DIMENSION ( W / H / D )	150mm(W) x 86mm(H) x 140mm(D)
PFC (POWER FACTOR CORRECTION)	Active PFC
POWER GOOD SIGNAL	100-500 msec
HOLD UP TIME	> 16msec at 70% of full load
INPUT CURRENT	12A max. | 6 – 12A | 10A max.
INPUT FREQUENCY RANGE	50Hz - 60Hz |47Hz - 63Hz | 47Hz - 63Hz
INPUT VOLTAGE	100V – 240V~
OPERATING TEMPERATURE	5°C to + 40°C | 5°C to + 40°C | 0°C to + 40°C
OPERATING HUMIDITY	20% to 85%, non-condensing | 20% to 85%, non-condensing | 20% to 90%, non-condensing
STORAGE TEMPERATURE	-40°C to + 55°C | -40°C to + 55°C | -40°C to + 70°C
STORAGE HUMIDITY	10% to 95%, non-condensing | 10% to 95%, non-condensing | 5% to 95%, non-condensing
COOLING SYSTEM	12cm Hydraulic bearing fan
EFFICIENCY	Meet 80 PLUS®Bronze at 115Vac input.
MTBF	100,000 hrs minimum
SAFETY APPROVAL	CE/CB/TUV/ UL/ FCC/ BSMI
PCI-E 6+2PIN	2
